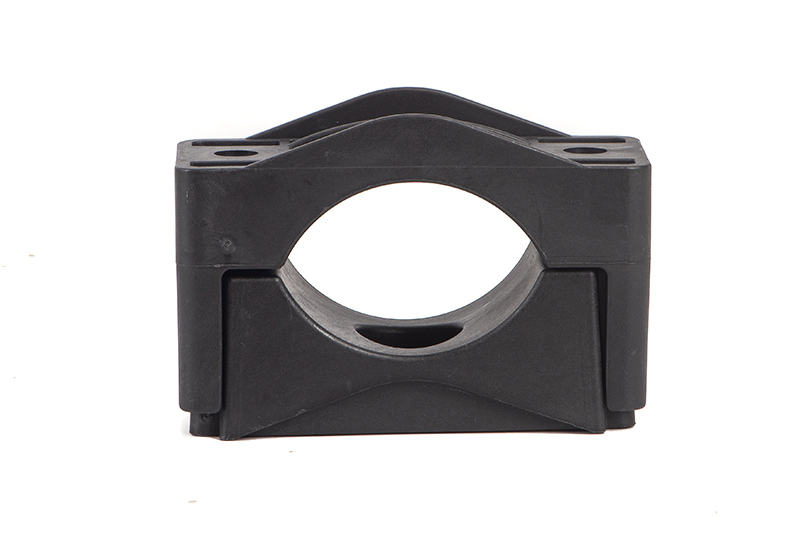

SEG 80 - 110

Item code: 22005

Kabelklemmen SEG 50 - 80

Kabelklemmen SEG 50 - 80 - maatschets

Applications

For the mounting of single and multicore cables.
Can be used with low, medium and high voltage cables with diameters between Ø 80 mm – 110 mm or tubes and hoses.

Features

  • Manufactured from polyamide (PA), glass fibre reinforced.
  • Resistant to oils, UV, ozone, salt, moisture, acids and even nuclear radiation.
  • UL94 self-extinguishing, Halogen-free.
  • Temperature range from -40°C to 120°C.
  • Mechanical resistance to short-circuits 20.000 N.
  • Coloured black.
  • Available pre-mounted.
  • Tailor-made fastening material is also available.
  • Stackable.

Tests

Dutchclamp SEG cable clamps have been tested by the Voltalab in Grenoble (Schneider) and SGS Brussels in accordance with international safety standard IEC 61914.

Dimensioned sketch

Type SEG 80 - 110
Cable ø 80-110
L 176
B 75
l 135
d 12,5
H1 78 - 135
H2 20
h 68
a 27
* Dimensions in mm
