Cable block IM 4 x 12 - 32

Item code: 30020
IM 4 x 12 - 32

tekening IM 4 X 12 - 32.jpg

Certified in accordance with the IEC 61914 international standard

Applications

For the short circuit proof mounting of single and multicore low, medium and high voltage cables in 4-fold.

3D Productshot Mounting instruction Download PDF

Range

For cables with an overall diameter of Ø 12 mm up to 32 mm. Also suitable for tubes and hoses.

  • Resistant to oils, fats, UV, ozone, frost, heat, salt, moisture, acids, alkalis and even nuclear radiation.
  • Uniquely linkable and stackable
  • UL94 self extinguishing, Halogen-free.
  • Temperature range from -40°C to 120°C. (225°C) momentarily.
  • Mechanical resistance 30.000 N
  • Coloured black.
  • Cables are always the right distance apart.
  • Non magnetic / non conductive.
  • Available pre-mounted.
  • Tailor-made fastening material is also available.
  • Non oxidizing / non corrosive.
  • No sharp angles.
  • Recyclable.
  • Lifetime warranty.
  • Very simple installation.
  • Available worldwide.

Tests

Dutchclamp IM cable blocks have been tested by UL (the underwriters laboratories U.S.A.), Voltalab in Grenoble (Schneider),and SGS Brussels in accordance with international safety standard IEC 61914.

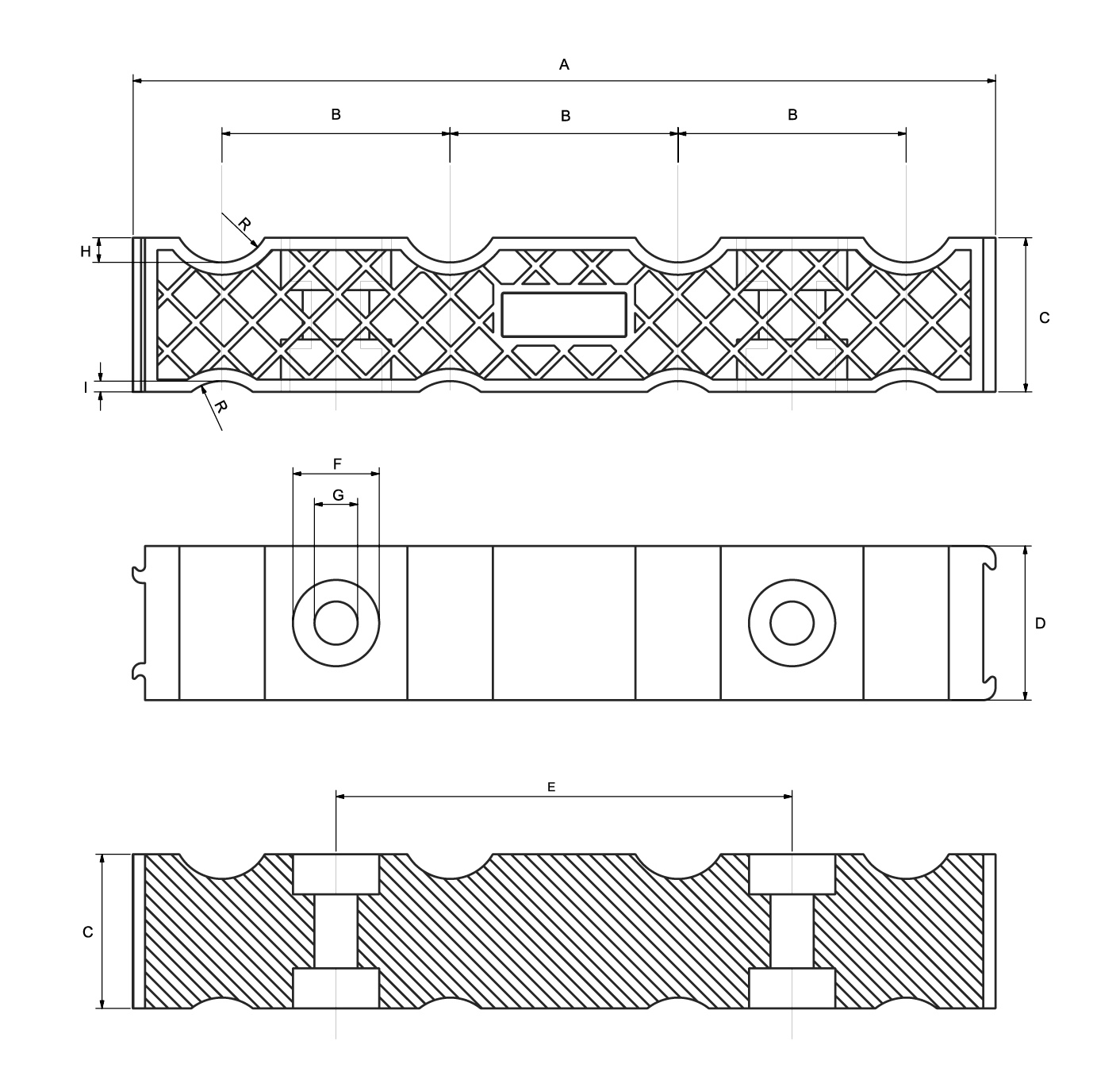

Dimensioned sketch

Type IM 4 x 12 - 32
A 280
B 74
C 50
D 50
E 147
F 28
G 14
H 9
I 4,5
* Dimensions in mm
